Iscar

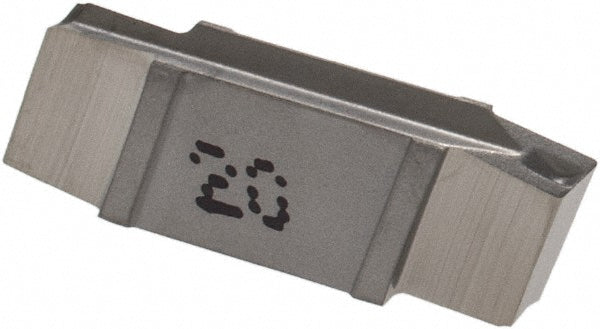

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6402158
MFR# 6402158ISO/ANSI# ISO 13399Series Cut Grip
$28.53List $35.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6402158 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerG
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size200020
Insert size code200020
Insert styleGIG
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIG 2.00-0.20
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
