Iscar

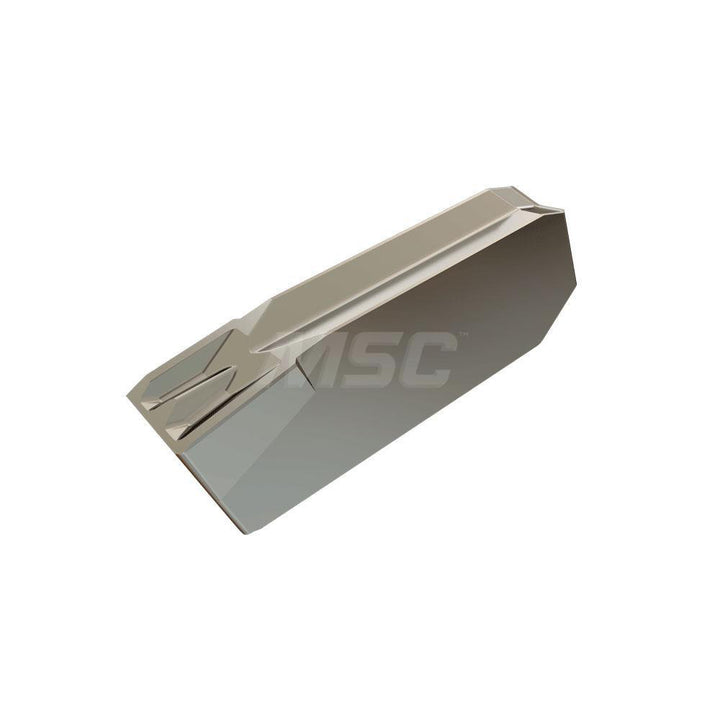

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6402266
MFR# 6402266ISO/ANSI# ISO 13399Series Cut-Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402266 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerA
Coating finishTiCN
Coating processPVD
Corner radius0.0087
Cutting width0.1260
Full radiusNo
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size324
Insert size code324
Insert styleGIM
Iso codeISO 13399
Lead angle4
Manufacturer gradeIC354
Material gradeC5; C6
Msc manufacturer numberGIM 3.2-4RA
Multi use toolYes
Overall length0.6024
Overall width0.0950
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
