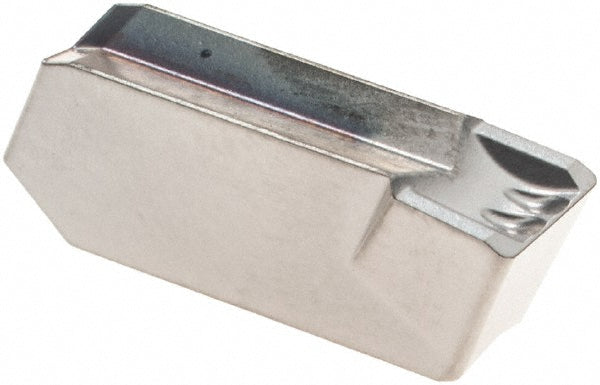

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6402267
MFR# 6402267ISO/ANSI# ISO 13399Series Cut Grip
$19.75List $25.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402267 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerC
Coating finishTiCN
Coating processPVD
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert materialSolid Carbide
Insert size5
Insert size code5C
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC354
Multi use toolYes
Overall length0.6024
Overall width0.1969
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
