Iscar

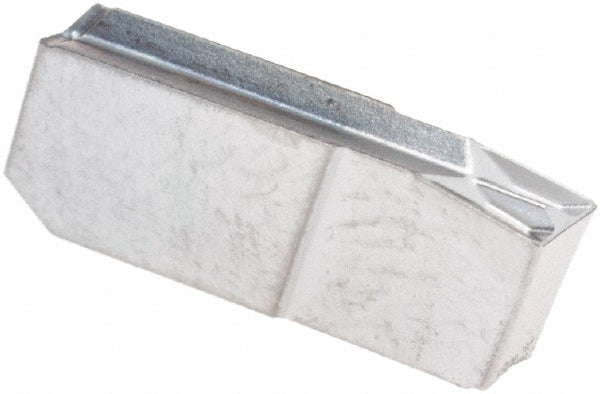

GIM 2.4 Carbide Insert, Grade IC354, TiCN - Iscar 6402290
MFR# 6402290ISO/ANSI# GIM 2.4Cat# GIM 2.4Series Cut Grip
$16.71List $21.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialCarbide
CoatingTiCN
Description
The Iscar 6402290 is a GIM 2.4 carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerW
Coating finishTiCN
Coating processPVD
Corner radius0.0067
Cutting height0.1969
Cutting width0.0945
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size24
Insert size code24
Insert styleGIM
Iso codeGIM 2.4
Manufacturers catalog numberGIM 2.4
Manufacturer gradeIC354
Material gradeP40
Measurement typeMetric
Multi use toolYes
Overall length0.6024
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
