Iscar

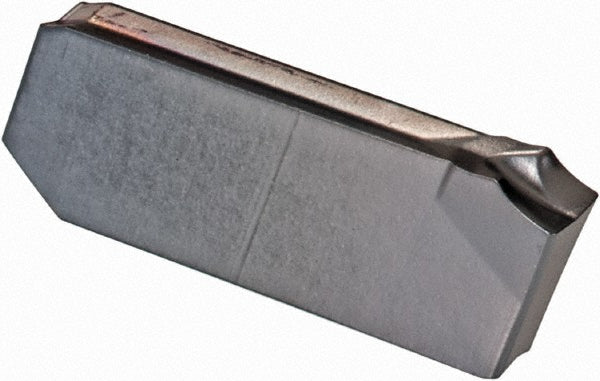

ISO 13399 Solid Carbide Insert, Grade IC354, TiN - Iscar 6402292
MFR# 6402292ISO/ANSI# ISO 13399Cat# GIM 2.2J-8RASeries Cut-Grip
$16.71List $21.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6402292 is a ISO 13399 solid carbide indexable insert, grade IC354, TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0067
Cutting tool applicationGrooving; Parting
Cutting width0.0870
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code2.2
Insert styleGIM
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberGIM 2.2J-8RA
Manufacturer gradeIC354
Material gradeP40
Multi use toolYes
Overall length0.6020
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
