Iscar

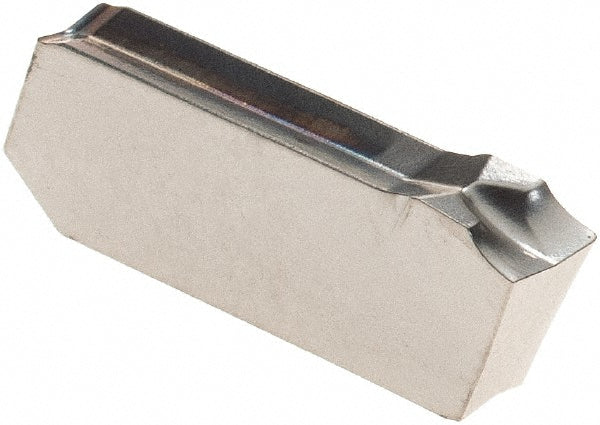

ISO 13399 Solid Carbide Insert, Grade IC354, TiN/TiCN - Iscar 6402293
MFR# 6402293ISO/ANSI# ISO 13399Cat# GIM 3J-4LASeries Cut-Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiN/TiCN
Description
The Iscar 6402293 is a ISO 13399 solid carbide indexable insert, grade IC354, TiN/TiCN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiN/TiCN
Coating processPVD
Corner radius0.0087
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handLeft Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleGIM
Iso codeISO 13399
Lead angle4
Lead angle directionLeft Hand
Manufacturers catalog numberGIM 3J-4LA
Manufacturer gradeIC354
Material gradeP40
Multi use toolYes
Overall length0.6020
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
