Iscar

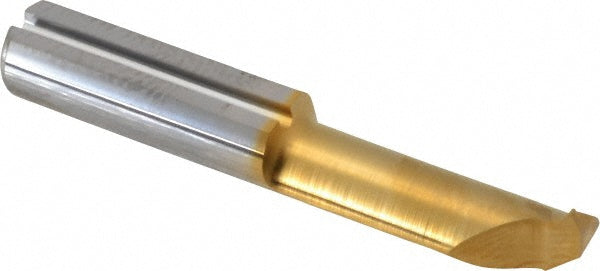

Single Point Threading Tools - Iscar 6402436
MFR# 6402436
$53.56List $68.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Iscar 6402436 single point threading tools.
Specifications
Coating finishTiN
Coolant throughNo
Cutting depth0.5512
Flat width0.0050
MaterialSolid Carbide
Maximum pitch (mm)1.00
Maximum threads per inch24
Minimum pitch (mm)1.00
Minimum threads per inch20
Overall length (mm)30.00
Profile angle60
Projection from center (mm)1.90
Projection from edge0.0200
Shank diameter (mm)5.00
Threading diameter0.1969
Thread directionRight Hand
Thread typeInternal
