Iscar

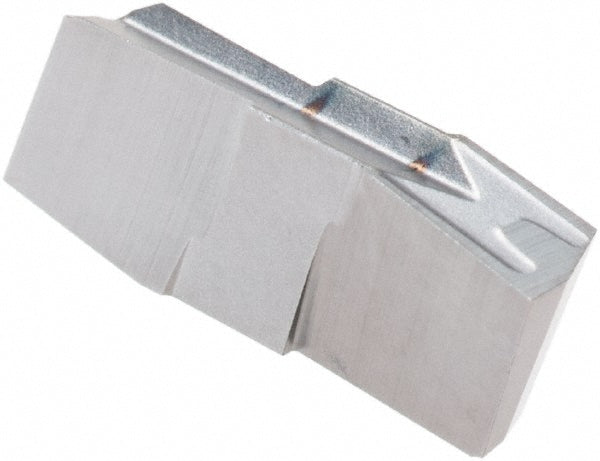

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6402457
MFR# 6402457ISO/ANSI# ISO 13399Series Cut Grip
$39.50List $50.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402457 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Cutting width0.1180
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3001250
Insert size code3001250
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC328
Maximum depth of cut0.0390
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6020
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
