Iscar

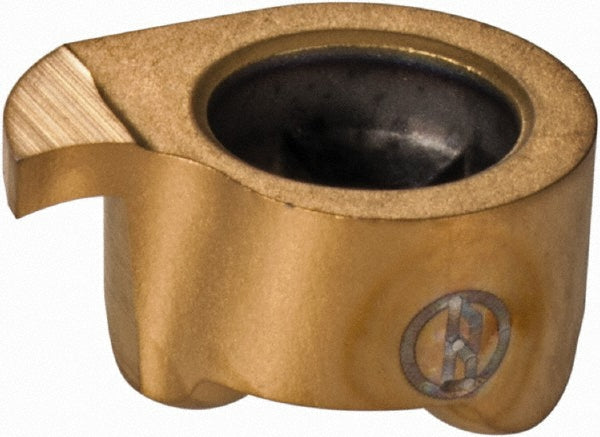

GIQR 8-0.85-0.00 Carbide Insert, Grade IC528, TiCN - Iscar 6402474
MFR# 6402474ISO/ANSI# GIQR 8-0.85-0.00Cat# GIQR 8-0.85-0.00Series ChamGroove
$29.52List $37.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialCarbide
CoatingTiCN
Description
The Iscar 6402474 is a GIQR 8-0.85-0.00 carbide indexable insert, grade IC528, TiCN coated. Suited for superalloys, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Cutting width0.033
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size8085000
Insert size code8085000
Insert styleGIQR
Iso codeGIQR 8-0.85-0.00
Manufacturers catalog numberGIQR 8-0.85-0.00
Manufacturer gradeIC528
Material gradeSubmicron
Maximum depth of cut0.0470
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Primary workpiece materialSuperalloys; Titanium
StandardsISO 13399
