Iscar

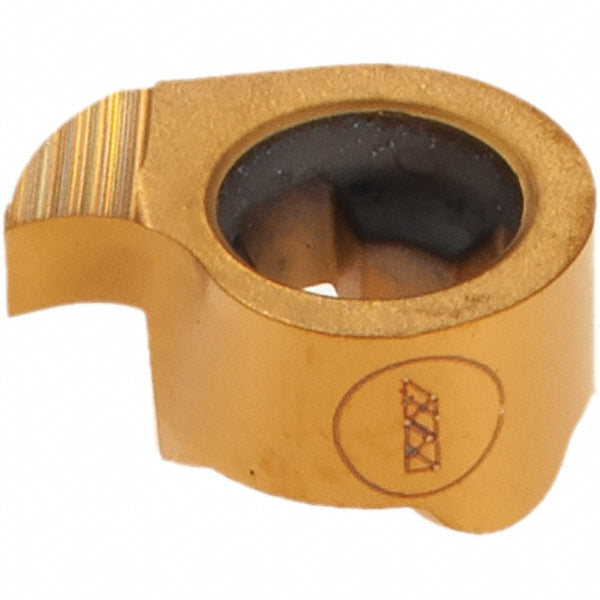

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402480
MFR# 6402480ISO/ANSI# ISO 13399Series ChamGroove
$29.52List $37.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402480 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0579
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size8147005
Insert size code8147005
Insert styleGIQR
Iso codeISO 13399
Manufacturer gradeIC528
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.3063
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
