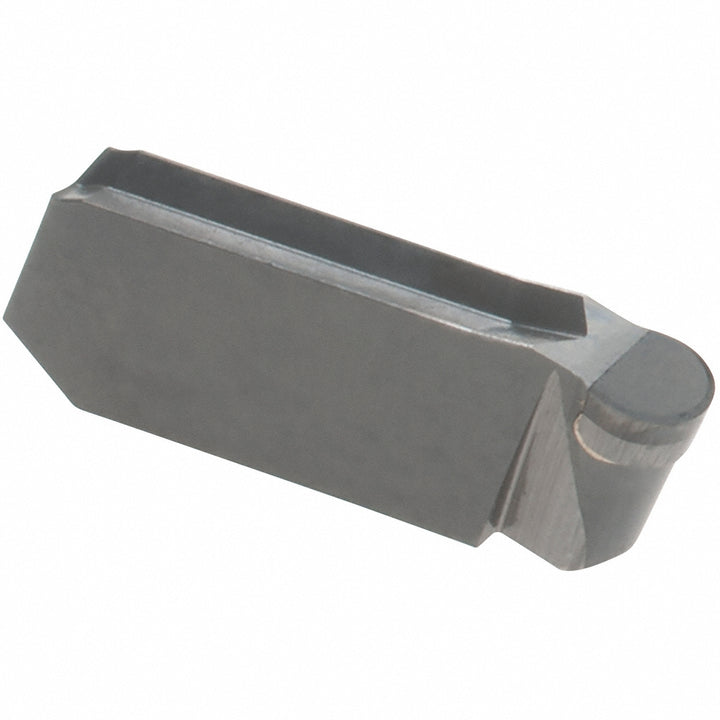

GITM 3.00K-1.50 Cubic Boron Nitride Insert, Grade IB50 - Iscar 6402563
MFR# 6402563ISO/ANSI# GITM 3.00K-1.50Cat# GITM 3.00K-1.50Series Cut Grip
$155.00List $198.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIB50
MaterialCubic Boron Nitride
Description
The Iscar 6402563 is a GITM 3.00K-1.50 cubic boron nitride indexable insert, grade IB50. Suited for cast iron, hard material.
Specifications
Corner radius0.0590
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCubic Boron Nitride
Insert size300K150
Insert size code300K150
Insert styleGITM
Iso codeGITM 3.00K-1.50
Lead angle20
Manufacturers catalog numberGITM 3.00K-1.50
Manufacturer gradeIB50
Maximum depth of cut0.0120
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5900
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
