Iscar

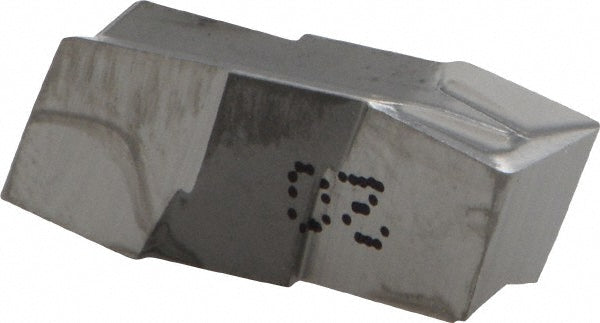

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6402600
MFR# 6402600ISO/ANSI# ISO 13399Series Cut Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6402600 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerPA
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size500040
Insert size code500040
Insert styleGIPA
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.5906
Overall width0.1969
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
