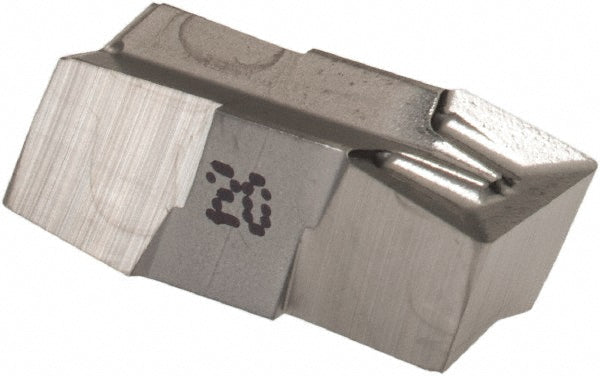

GIPA 6.00-0.40 Carbide Insert, Grade IC20 - Iscar 6402601
MFR# 6402601ISO/ANSI# GIPA 6.00-0.40Cat# GIPA 6.00-0.40Series Cut Grip
$38.80List $49.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialCarbide
Description
The Iscar 6402601 is a GIPA 6.00-0.40 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerPA
Corner radius0.0160
Cutting height0.1970
Cutting width0.2362
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size600040
Insert size code600040
Insert styleGIPA
Iso codeGIPA 6.00-0.40
Manufacturers catalog numberGIPA 6.00-0.40
Manufacturer gradeIC20
Maximum depth of cut0.1420
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.59
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
