Iscar

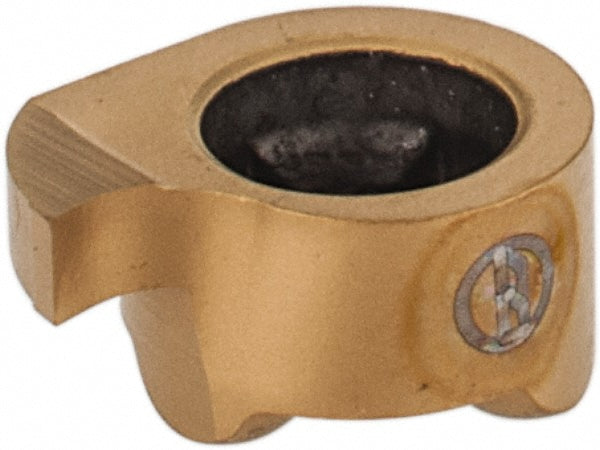

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402602
MFR# 6402602ISO/ANSI# ISO 13399Cat# GIQR 8-1.50-0.05Series ChamGroove
$30.04List $37.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402602 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0591
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size8150005
Insert size code8150005
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 8-1.50-0.05
Manufacturer gradeIC528
Material gradeC5; C6
Maximum depth of cut (mm)1.50
Multi use toolNo
Overall length0.3063
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
