Iscar

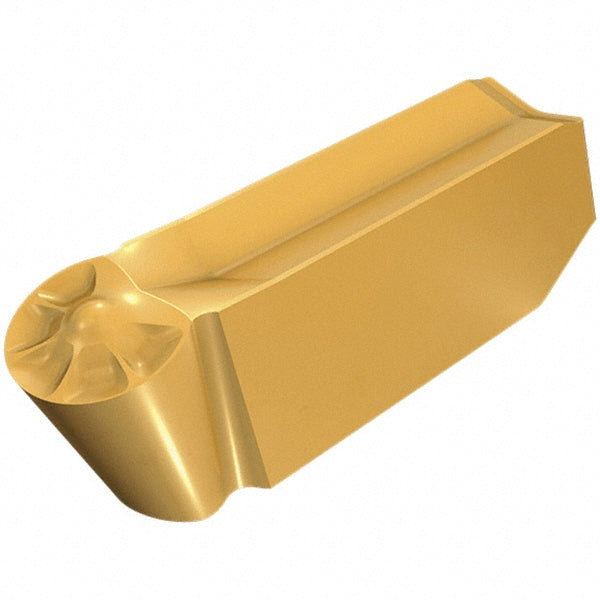

GIPY 3.00-1.50 Solid Carbide Insert, Grade IC320, TiCN - Iscar 6402611
MFR# 6402611ISO/ANSI# GIPY 3.00-1.50Cat# GIPY 3.00-1.50Series Cut Grip
$22.80List $29.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC320
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402611 is a GIPY 3.00-1.50 solid carbide indexable insert, grade IC320, TiCN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiCN
Coating processPVD
Corner radius0.0590
Cutting height0.1970
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size300150
Insert size code300150
Insert styleGIPY
Iso codeGIPY 3.00-1.50
Manufacturers catalog numberGIPY 3.00-1.50
Manufacturer gradeIC320
Multi use toolYes
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
