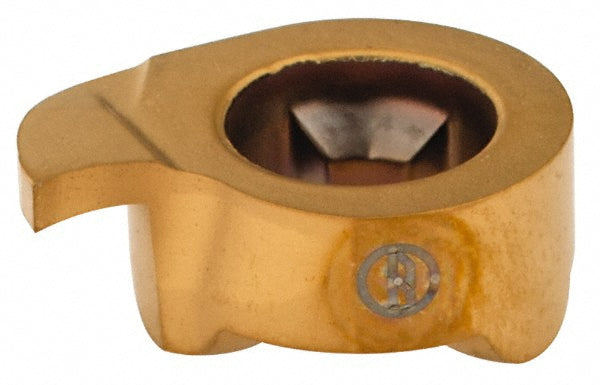

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402630
MFR# 6402630ISO/ANSI# ISO 13399Cat# GIQR 11-1.04-0.05Series ChamGroove
$29.83List $38.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402630 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0409
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size11104005
Insert size code1110405
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 11-1.04-0.05
Manufacturer gradeIC528
Material gradeC5; C6
Maximum depth of cut (mm)2.00
Multi use toolNo
Overall length0.4205
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
