Iscar

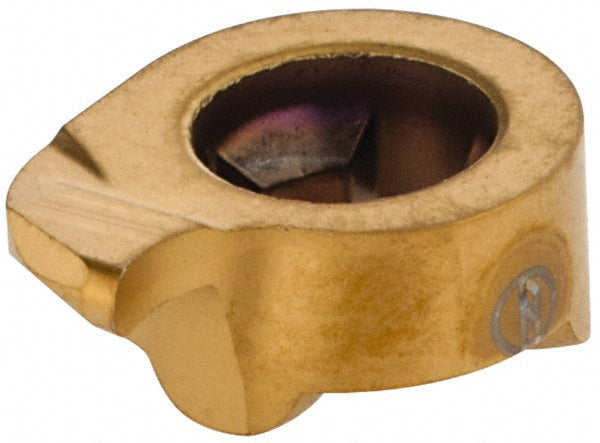

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402632
MFR# 6402632ISO/ANSI# ISO 13399Cat# GIQR 11-1.20-R060Series ChamGroove
$32.41List $41.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402632 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0236
Cutting width0.0472
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size11-1.20
Insert size code11120R060
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 11-1.20-R060
Manufacturer gradeIC528
Material gradeC5; C6
Maximum depth of cut0.0236
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.4205
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
