Iscar

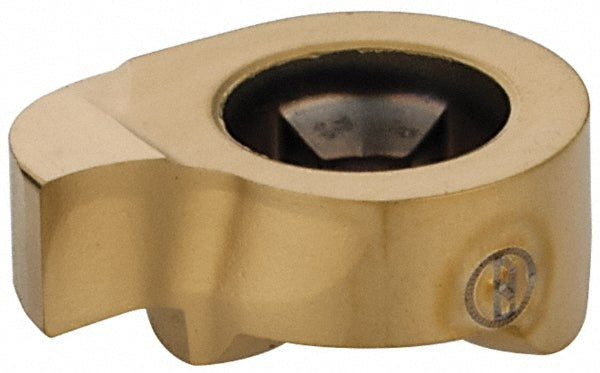

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402645
MFR# 6402645ISO/ANSI# ISO 13399Cat# GIQR 11-3.00-0.20Series ChamGroove
$29.83List $38.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402645 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size110302
Insert size code11300020
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 11-3.00-0.20
Manufacturer gradeIC528
Material gradeC5; C6
Maximum depth of cut0.0472
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.4205
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
