Iscar
ISO 13399 Carbide Insert, Grade IC528 - Iscar 6402647
MFR# 6402647ISO/ANSI# ISO 13399Series ChamGroove
$34.43List $44.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialCarbide
Description

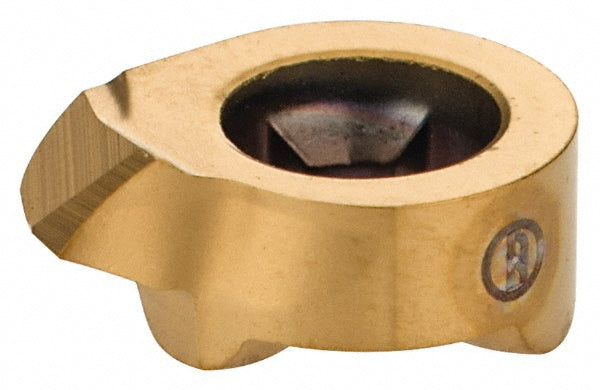

The Iscar 6402647 is a ISO 13399 carbide indexable insert, grade IC528.
Specifications
ChipbreakerMT
Coating processPVD
Corner radius (mm)0.05mm
Finish coatingCoated
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size11
Insert styleGIQ
Internal pitch0.90 mm; 28 TPI
Iso codeISO 13399
Manufacturer gradeIC528
Material gradeC3; C7
StandardsISO 13399
Thread standardPartial Profile 60 Degree
Thread typeInternal
