Iscar

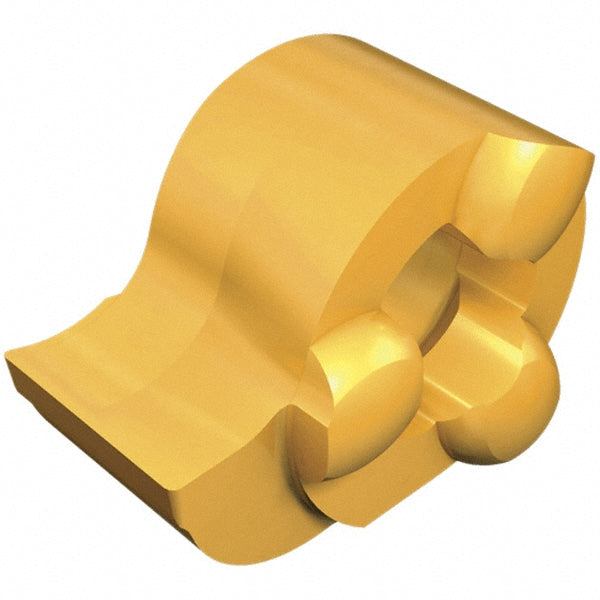

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402653
MFR# 6402653ISO/ANSI# ISO 13399Series ChamGroove
$29.83List $38.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402653 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0472
Full radiusNo
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size11120005
Insert size code11120005
Insert styleGIQL
Iso codeISO 13399
Manufacturer gradeIC528
Maximum depth of cut0.0906
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.4205
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
