Iscar

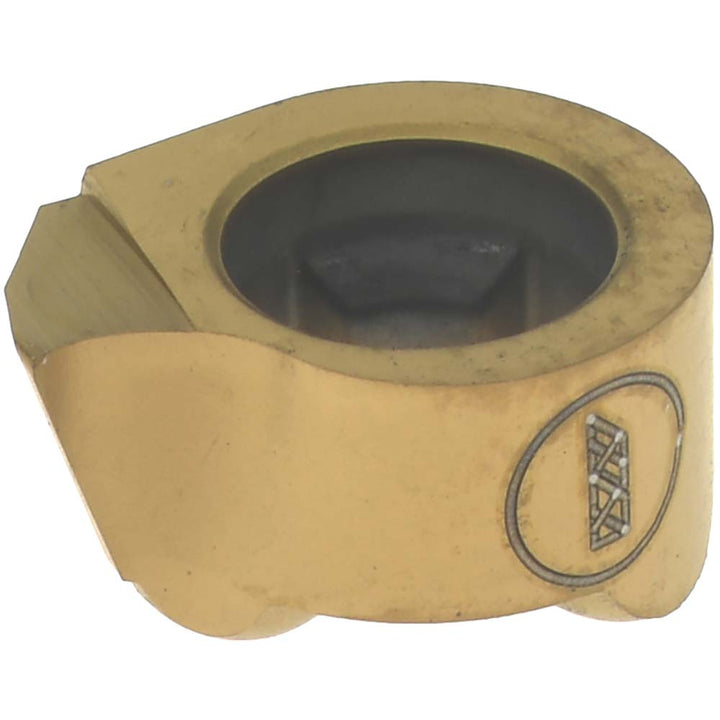

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402676
MFR# 6402676ISO/ANSI# ISO 13399Cat# GIQR 8-A18-0.15Series ChamGroove
$33.97List $43.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6402676 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0059
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size8
Insert size code8A18015
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 8-A18-0.15
Manufacturer gradeIC528
Material gradeC6
Maximum depth of cut0.0510
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.2992
Overall width0.1181
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle18.00
StandardsISO 13399
