Iscar
ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6402682
MFR# 6402682ISO/ANSI# ISO 13399Cat# GIQR 11-B18-0.15Series ChamGroove
$33.41List $42.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description

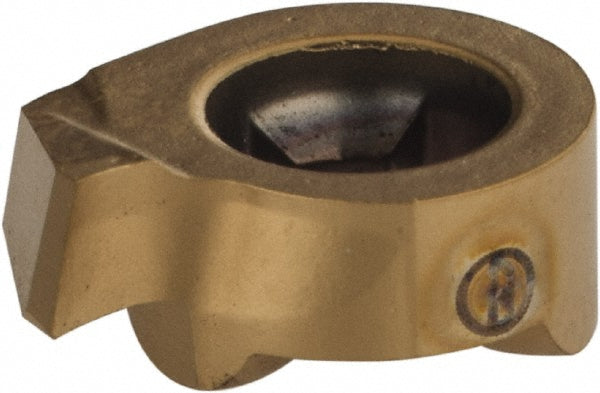

The Iscar 6402682 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0059
Cutting width0.0984
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size11-B18-0.15
Insert size code11B18015
Insert styleGIQR
Iso codeISO 13399
Manufacturers catalog numberGIQR 11-B18-0.15
Manufacturer gradeIC528
Material gradeC5; C6
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.4213
Overall width0.0984
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle18.00
StandardsISO 13399
