Iscar

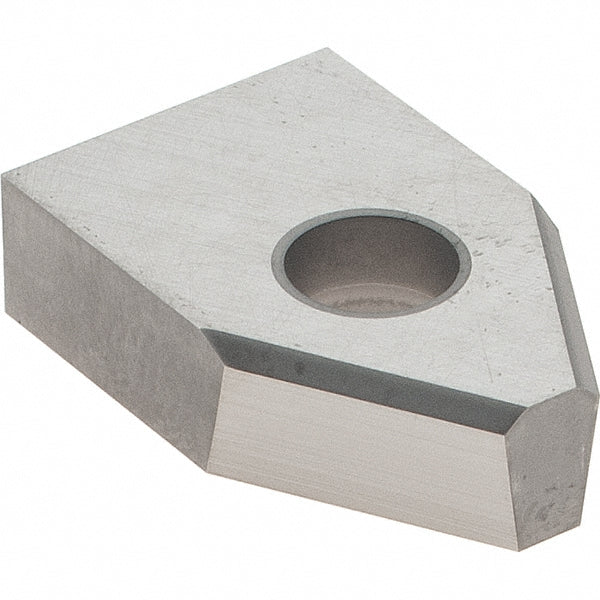

ISO 13399 Solid Carbide Insert, Grade IC54 - Iscar 6402741
MFR# 6402741ISO/ANSI# ISO 13399Series V-Lock
$29.66List $30.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC54
MaterialSolid Carbide
Description
The Iscar 6402741 is a ISO 13399 solid carbide indexable insert, grade IC54. Suited for stainless steel, steel.
Specifications
Cutting height0.2106
Cutting width0.5118
Full radiusNo
Hole diameter0.2165
Included angle degree60
Inscribed circle0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size130505
Insert size code130505
Insert styleXNUW
Iso codeISO 13399
Manufacturer gradeIC54
Multi use toolNo
Overall length0.8110
Overall width0.5118
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
