Iscar

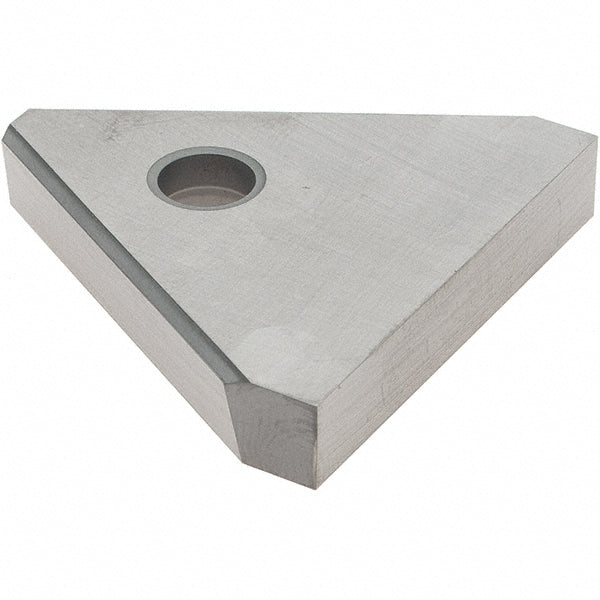

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6402755
MFR# 6402755ISO/ANSI# ISO 13399Series V-Lock
$62.56List $64.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6402755 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Cutting height0.2500
Cutting width1.4370
Full radiusNo
Hole diameter0.2559
Included angle degree60
Inscribed circle0.7500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size360610
Insert size code360610
Insert styleXNUW
Iso codeISO 13399
Manufacturer gradeIC20
Multi use toolNo
Overall length1.3622
Overall width1.4370
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
