Iscar

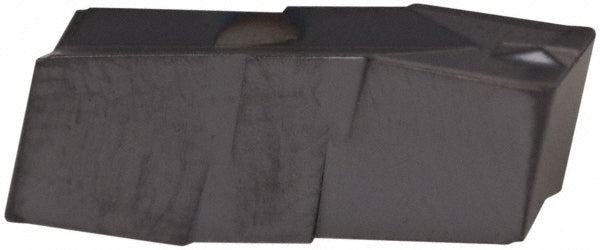

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402787
MFR# 6402787ISO/ANSI# ISO 13399Series Cut-Grip
$38.65List $49.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402787 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size400040
Insert size code400E040
Insert styleGIP
Iso codeISO 13399
Lead angle7
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberGIP 4.00E-0.40
Multi use toolYes
Overall length0.6300
Overall width0.1260
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
