Iscar

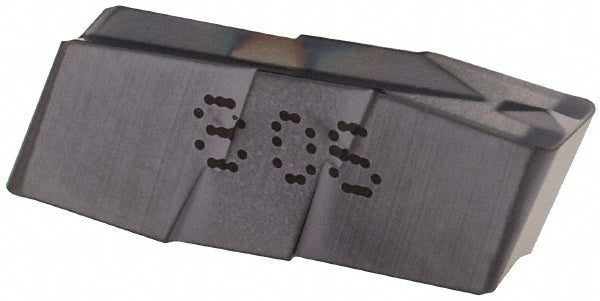

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402796
MFR# 6402796ISO/ANSI# ISO 13399Series Cut Grip
$38.65List $49.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402796 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerE
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400060
Insert size code400E060
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.0295
Maximum depth of cut range0.0000 to 0.0750
Msc manufacturer numberGIP 4.00E-0.60
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
