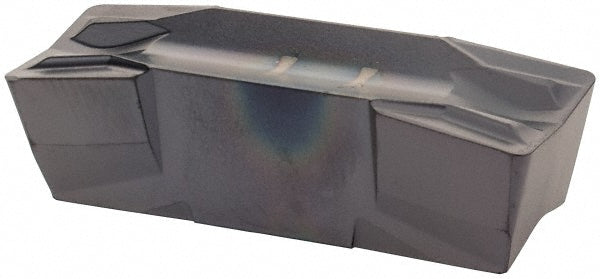

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402797
MFR# 6402797ISO/ANSI# ISO 13399Series Cut-Grip
$66.76List $85.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402797 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.3937
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size1000080
Insert size code1000E080
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.2362
Maximum depth of cut range0.2000 to 0.3000
Msc manufacturer numberGIF 10.00E-0.80
Multi use toolNo
Overall length1.1811
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
