Iscar

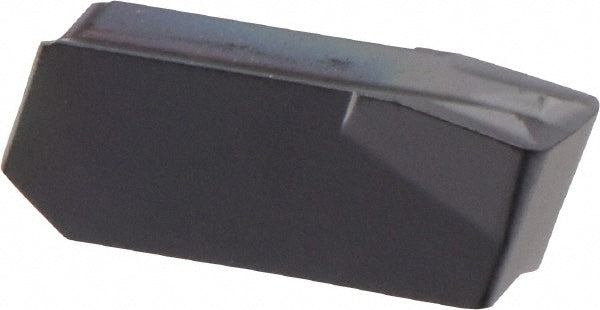

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402803
MFR# 6402803ISO/ANSI# ISO 13399Series Cut Grip
$17.73List $22.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402803 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutting width0.1575
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size406
Insert size code406
Insert styleGIMF
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
