Iscar
ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402804
MFR# 6402804ISO/ANSI# ISO 13399Series Cut Grip
$22.49List $28.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description

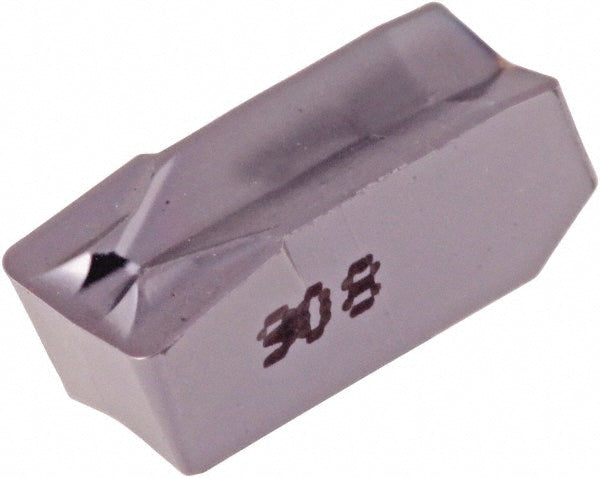

The Iscar 6402804 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting height0.1970
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert seat size5
Insert size608
Insert size code608
Insert styleGIMF
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC908
Maximum depth of cut0.1420
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIMF 608
Multi use toolYes
Overall length0.5940
Primary workpiece materialUniversal
RakePositive
Rake angle0.00
Single or double endSingle
StandardsISO 13399
