Iscar

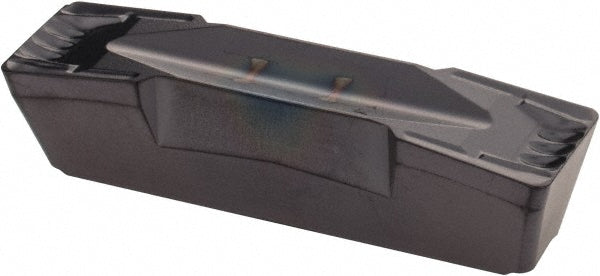

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402807
MFR# 6402807ISO/ANSI# ISO 13399Series Cut Grip
$43.65List $55.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402807 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Gage diameter1.9685
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGDMY
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut1.0630
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length1.1811
Overall width0.3150
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
