Iscar

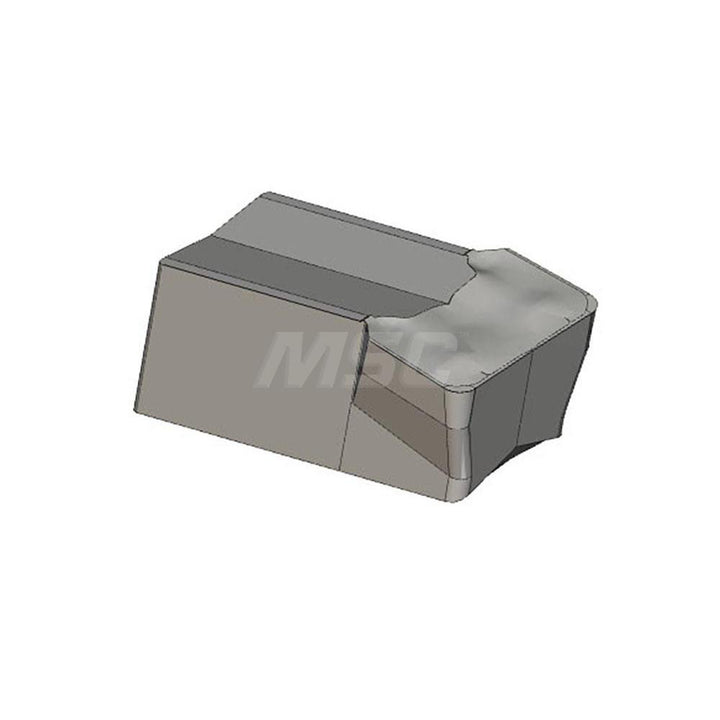

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402811
MFR# 6402811ISO/ANSI# ISO 13399Series Cut-Grip
$24.52List $31.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402811 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGIMY
Iso codeISO 13399
Lead angle7
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1890
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberGIMY 808
Multi use toolYes
Overall length0.6300
Overall width0.2360
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
