Iscar

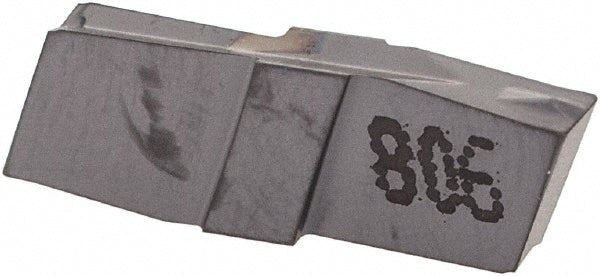

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402816
MFR# 6402816ISO/ANSI# ISO 13399Series Cut-Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402816 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0972
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size247020
Insert size code247020
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut (mm)5.00
Msc manufacturer numberGIP 2.47-0.20
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
