Iscar

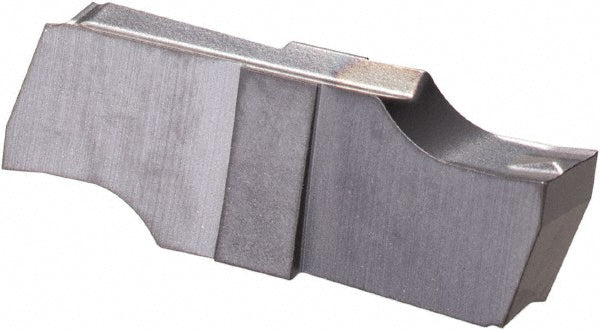

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402825
MFR# 6402825ISO/ANSI# ISO 13399Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402825 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting width0.1063
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size270010
Insert size code270010
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Overall length0.6181
Overall width0.1063
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
