Iscar

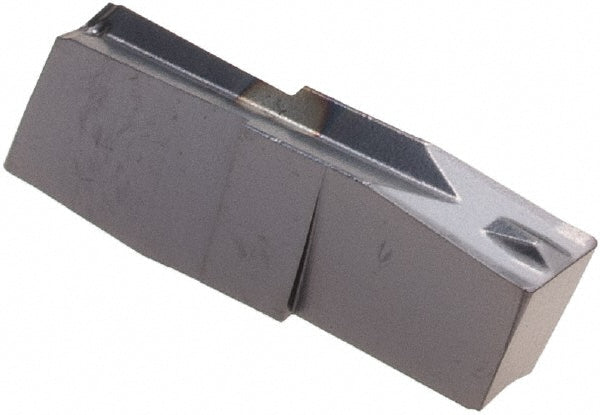

GIP 2.87-0.20 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6402827
MFR# 6402827ISO/ANSI# GIP 2.87-0.20Cat# GIP 2.87-0.20Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6402827 is a GIP 2.87-0.20 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting height0.1970
Cutting width0.1130
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size287020
Insert size code287020
Insert styleGIP
Iso codeGIP 2.87-0.20
Manufacturers catalog numberGIP 2.87-0.20
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
