Iscar

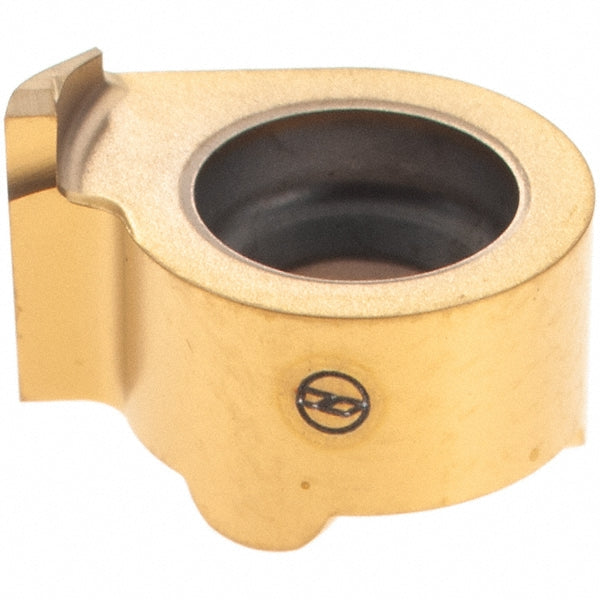

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6403052
MFR# 6403052ISO/ANSI# ISO 13399Series ChamGroove
$28.11List $36.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6403052 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0394
Full radiusNo
Gage diameter0.4724
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size12100005
Insert size code12100005
Insert styleGFQR
Iso codeISO 13399
Manufacturer gradeIC528
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.3543
Overall width0.0394
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
