Iscar

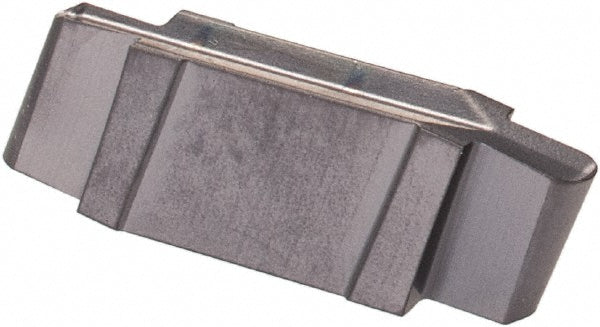

GIP 1.57-0.79 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403123
MFR# 6403123ISO/ANSI# GIP 1.57-0.79Cat# GIP 1.57-0.79Series Cut Grip
$37.95List $48.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403123 is a GIP 1.57-0.79 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Cutting height0.1970
Cutting width0.0620
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size157079
Insert size code157079
Insert styleGIP
Iso codeGIP 1.57-0.79
Manufacturers catalog numberGIP 1.57-0.79
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1060
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
