Iscar

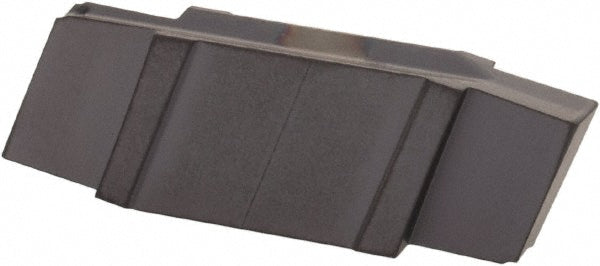

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403125
MFR# 6403125ISO/ANSI# ISO 13399Series Cut-Grip
$36.54List $46.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403125 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0071
Cutting width0.0701
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size178018
Insert size code178018
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut (mm)3.00
Msc manufacturer numberGIP 1.78-0.18
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
