Iscar

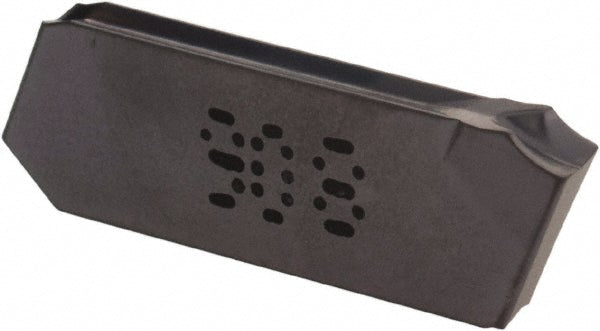

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403168
MFR# 6403168ISO/ANSI# ISO 13399Series Cut-Grip
$16.71List $21.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403168 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerA
Coating finishTiAlN
Coating processPVD
Corner radius0.0067
Cutting width0.0866
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size22J8
Insert size code22J8
Insert styleGIM
Iso codeISO 13399
Lead angle8
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Msc manufacturer numberGIM 2.2J-8RA
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
