Iscar

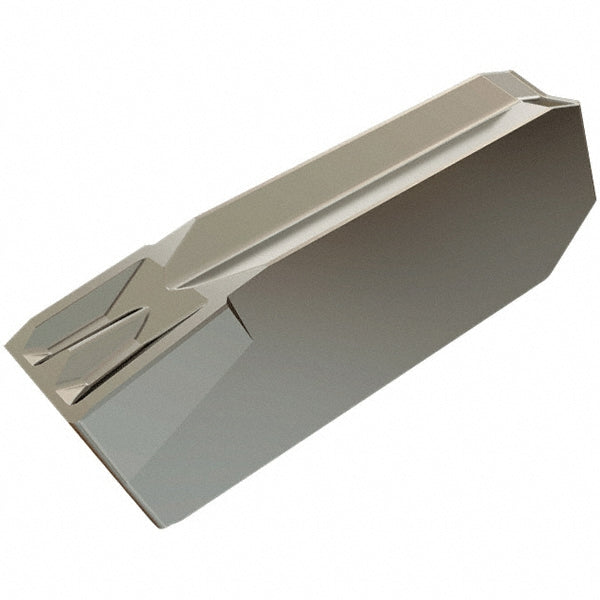

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6403170
MFR# 6403170ISO/ANSI# ISO 13399Series Cut Grip
$17.64List $22.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6403170 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Ansi codeGIM 3-8RA IC908
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0098
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size38
Insert size code38
Insert styleGIM
Iso codeISO 13399
Lead angle8
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Overall length0.6024
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
