Iscar

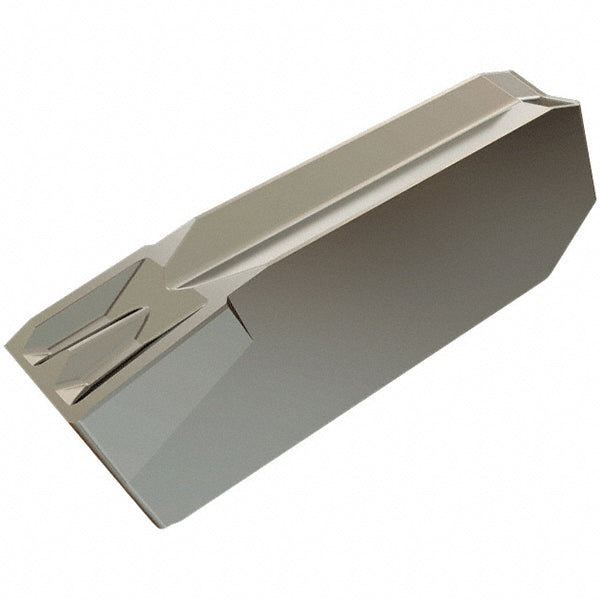

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403175
MFR# 6403175ISO/ANSI# ISO 13399Series Cut Grip
$17.65List $22.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403175 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0098
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size44
Insert size code44
Insert styleGIM
Iso codeISO 13399
Lead angle4
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
