Iscar

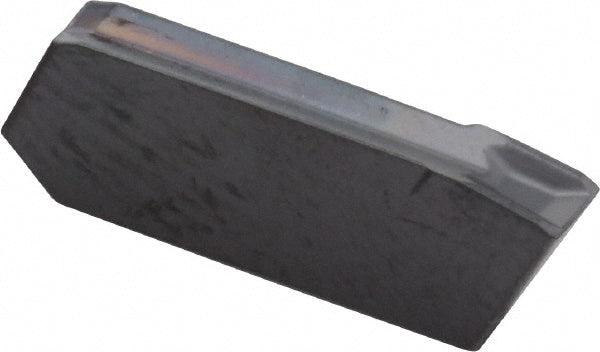

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6403180
MFR# 6403180ISO/ANSI# ISO 13399Cat# GIM 3CSeries Cut-Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6403180 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0087
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleGIM
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberGIM 3C
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Overall length0.5900
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
