Iscar

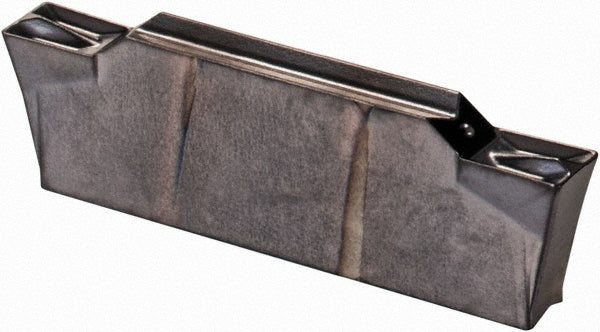

GDMW 2.4 Carbide Insert, Grade IC908, TiAlN - Iscar 6403192
MFR# 6403192ISO/ANSI# GDMW 2.4Cat# GDMW 2.4Series Cut Grip
$25.61List $32.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6403192 is a GDMW 2.4 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0071
Cutting height0.2165
Cutting width0.0945
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size24
Insert size code24
Insert styleGDMW
Iso codeGDMW 2.4
Manufacturers catalog numberGDMW 2.4
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7874
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
