Iscar

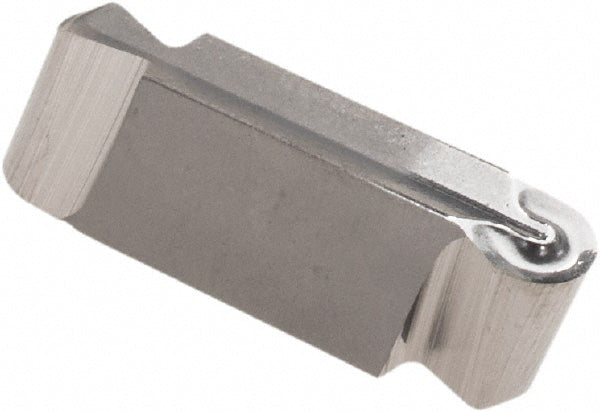

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6403197
MFR# 6403197ISO/ANSI# ISO 13399Series Cut Grip
$31.31List $40.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6403197 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerA
Corner radius0.0591
Cutting width0.1181
Full radiusYes
Gage diameter6.2992
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size300150
Insert size code300150
Insert styleGIPA
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5906
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
