Iscar

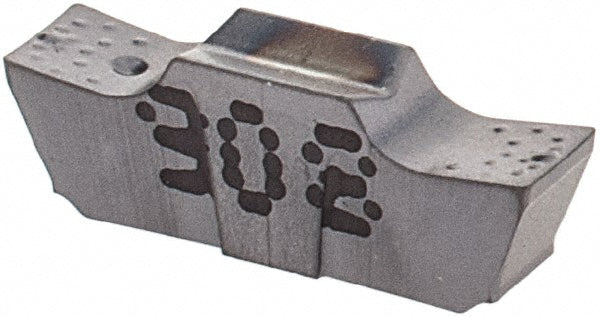

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403199
MFR# 6403199ISO/ANSI# ISO 13399Series Cut-Grip
$35.21List $45.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403199 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0059
Cutting width0.0941
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size239015
Insert size code239015
Insert styleGEPI
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0394
Maximum depth of cut range0.0000 to 0.0750
Msc manufacturer numberGEPI 2.39-0.15
Multi use toolNo
Overall length0.3940
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
