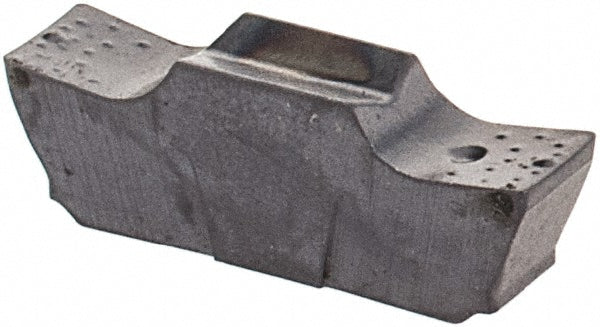

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403201
MFR# 6403201ISO/ANSI# ISO 13399Series Cut Grip
$36.07List $46.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403201 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0972
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size247020
Insert size code247020
Insert styleGEPI
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.3937
Overall width0.0972
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
