Iscar

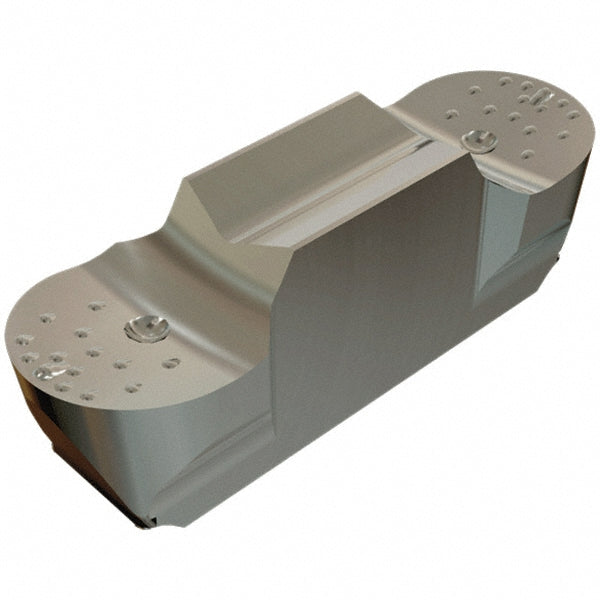

GEPI 3.00-1.50 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403209
MFR# 6403209ISO/ANSI# GEPI 3.00-1.50Cat# GEPI 3.00-1.50Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403209 is a GEPI 3.00-1.50 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutting height0.1140
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size300150
Insert size code300150
Insert styleGEPI
Iso codeGEPI 3.00-1.50
Manufacturers catalog numberGEPI 3.00-1.50
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1970
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.3940
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
