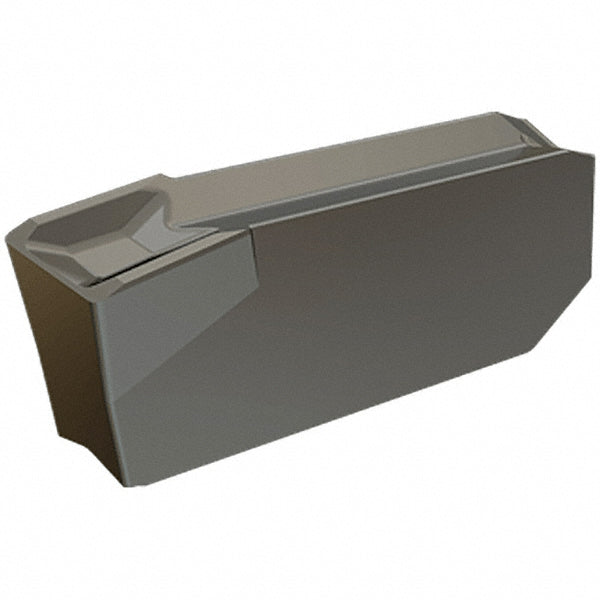

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6403213
MFR# 6403213ISO/ANSI# ISO 13399Series Cut Grip
$22.33List $28.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6403213 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerC
Coating finishTiCN
Coating processPVD
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Gage diameter6.2992
Insert handNeutral
Insert materialSolid Carbide
Insert size6
Insert size code6C
Insert styleGIM
Iso codeISO 13399
Manufacturer gradeIC328
Multi use toolYes
Overall length0.6024
Overall width0.2362
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
