Iscar

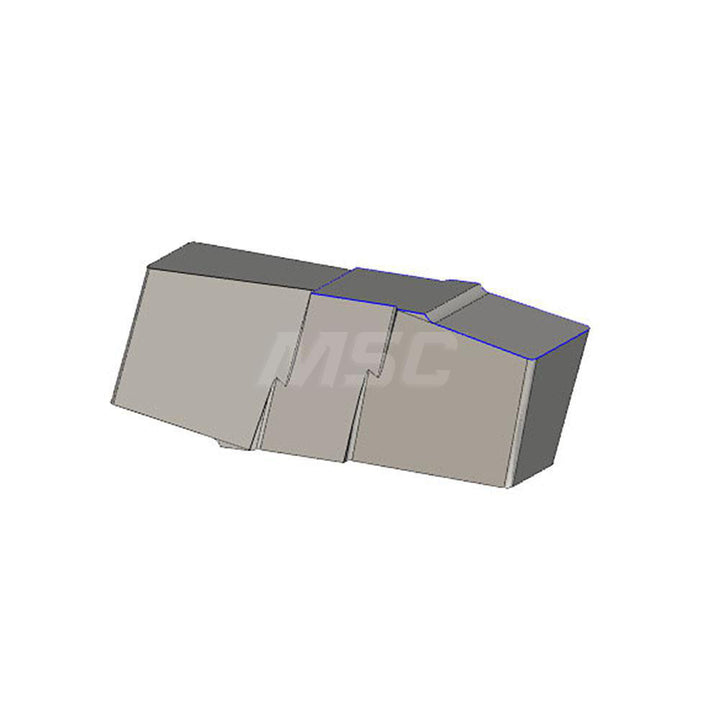

GIP 3.18-0.20-22D Solid Carbide Insert, Grade IC9054, Al2O3 - Iscar 6403274
MFR# 6403274ISO/ANSI# GIP 3.18-0.20-22DCat# GIP 3.18-0.20-22DSeries Cut Grip
$45.30List $57.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9054
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6403274 is a GIP 3.18-0.20-22D solid carbide indexable insert, grade IC9054, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius0.0080
Cutting width0.1250
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size318020
Insert size code318020
Insert styleGIP
Iso codeGIP 3.18-0.20-22D
Manufacturers catalog numberGIP 3.18-0.20-22D
Manufacturer gradeIC9054
Maximum depth of cut0.1380
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.6020
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
