Iscar

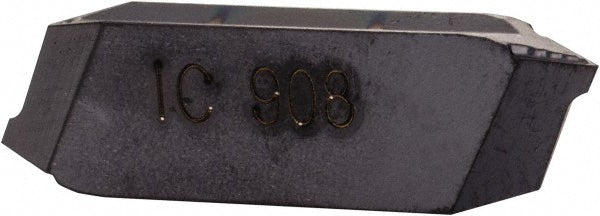

ISO 13399 Carbide Insert, Grade IC908 - Iscar 6403300
MFR# 6403300ISO/ANSI# ISO 13399Series Cut Grip
$40.22List $51.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
Description
The Iscar 6403300 is a ISO 13399 carbide indexable insert, grade IC908.
Specifications
ChipbreakerMT
Coating processPVD
Corner radius0.0020
External pitch0.45 mm; 56 TPI
Finish coatingCoated
Included angle60degree
Insert materialCarbide
Insert size2
Insert styleTIP
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
StandardsISO 13399
Thread standardPartial Profile 60 Degree
Thread typeExternal
Width of cutting tip0.0945
