Iscar

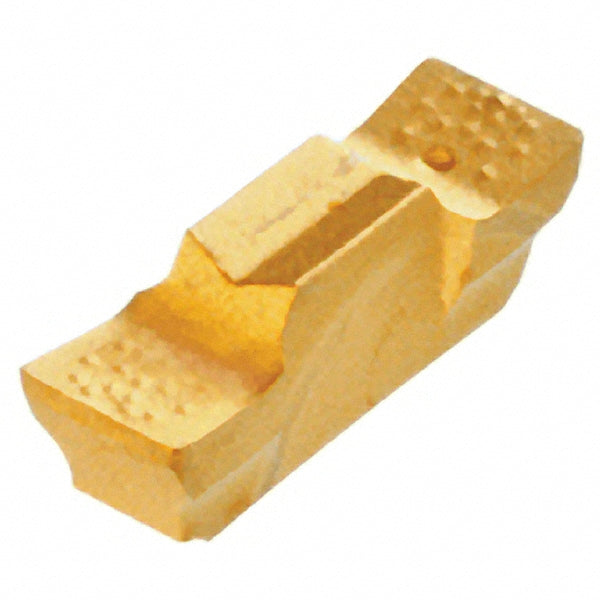

GEPI 1.85-0.10 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403351
MFR# 6403351ISO/ANSI# GEPI 1.85-0.10Cat# GEPI 1.85-0.10Series Cut Grip
$35.21List $45.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403351 is a GEPI 1.85-0.10 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting height0.1140
Cutting width0.0730
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size185010
Insert size code185010
Insert styleGEPI
Iso codeGEPI 1.85-0.10
Manufacturers catalog numberGEPI 1.85-0.10
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.0980
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.3940
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
